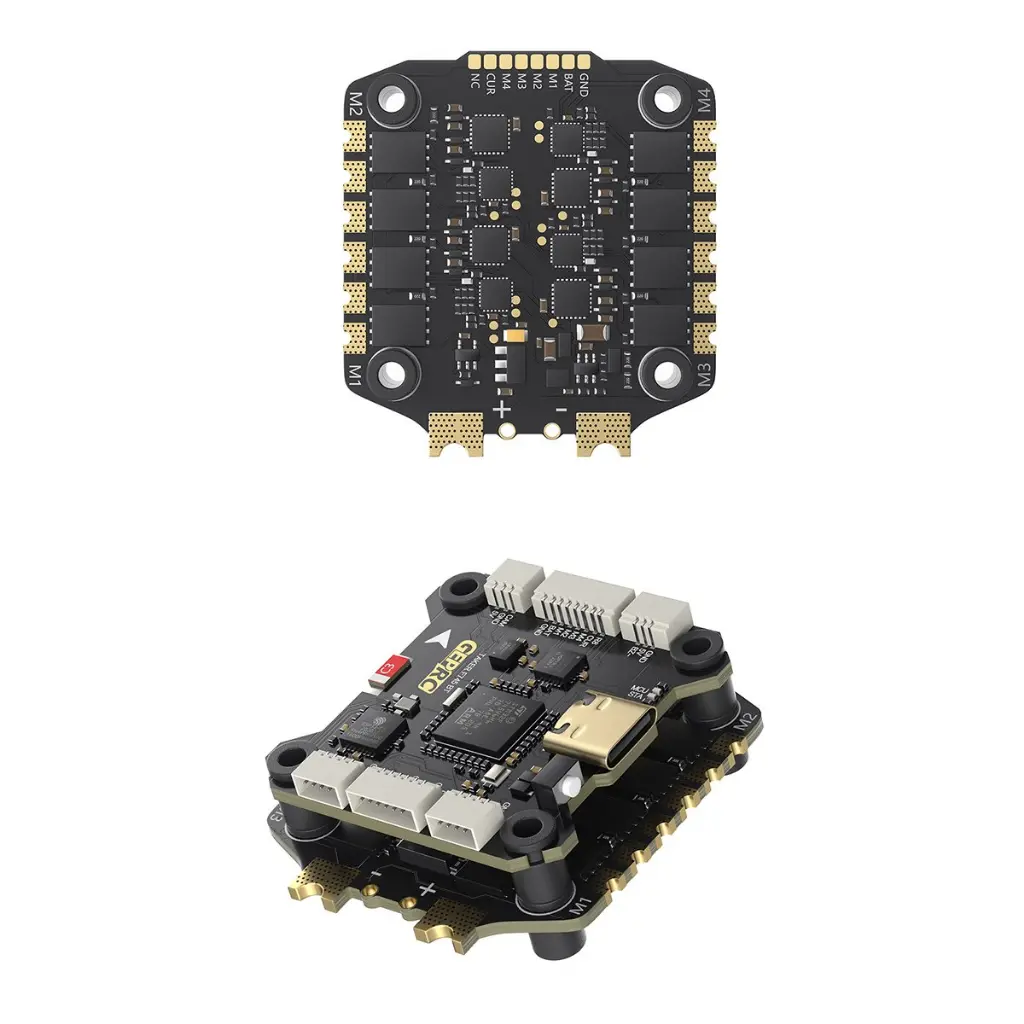

Geprc TAKER F745 BT 8-Bit 60A Stack

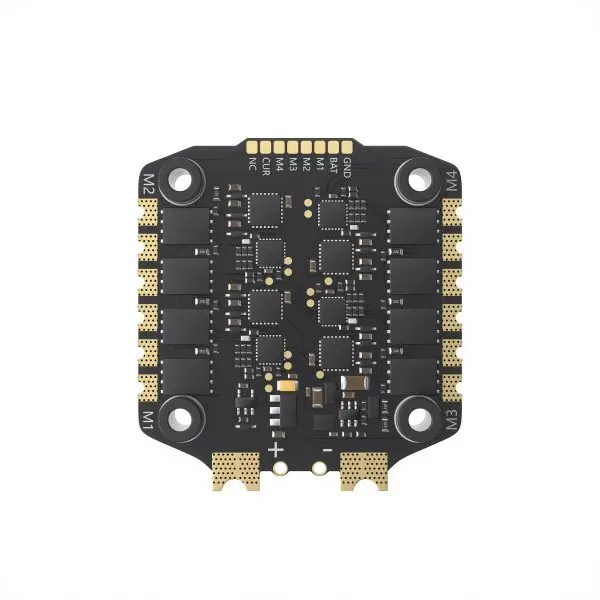

The GEPRC TAKER F745 BT 8-Bit 60A Stackis a high-performance flight stack designed for advanced FPV drone applications. It features an STM32F745VGH6 processor with a Cortex-M7 core running at up to 216MHz, ensuring fast and stable flight control . The dual gyroscope setup, combining MPU6000 and ICM42688-P, provides precise and reliable flight performance. Equipped with a 512MB black box, Bluetooth wireless tuning, and a Type-C USB interface, it offers modern connectivity and ease of use. The stack includes the H60_BLS 60A 4-in-1 ESC, delivering smooth power delivery for demanding flight maneuvers. With dual BEC outputs (5V@3A and 12V@2.5A), it ensures stable power for all components. This stack is ideal for pilots seeking a robust and feature-rich solution for their FPV drones.
₹ 10,300.00 ₹ 10,300.00 Tax Excluded

Not Available For Sale

This combination does not exist.

geprc stack flight controller
Contact Us

Share

SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack

SpeedyBee F405 V3 BLS 60A Stack

The SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack is a high-performance flight controller and electronic speed controller combination designed for FPV racing and freestyle drones.

Flight Controller Specifications:

  • MCU: STM32F405
  • Gyro: BMI270
  • USB Port Type: Type-C
  • Barometer: Built-in
  • OSD Chip: AT7456E
  • Bluetooth: Supported (used for flight controller configuration; MSP should be enabled with baud rate 115200 on UART4)
  • Power Input: 3S – 6S LiPo
  • 5V Output: 9 groups, total current load 2A
  • 9V Output: 2 groups, total current load 2A
  • 3.3V Output: Up to 500mA current load
  • 4.5V Output: Up to 1A current load
  • UART: 6 sets (UART1, UART2, UART3, UART4 for Bluetooth, UART5 for ESC telemetry, UART6)
  • Mounting: 30.5 x 30.5mm (4mm hole diameter)
  • Dimensions: 41.6(L) x 39.4(W) x 7.8(H) mm
  • Weight: 9.6g

ESC Specifications:

  • Firmware: BLHeli_S J-H-40
  • Continuous Current: 60A per motor
  • Burst Current: 80A (10 seconds)
  • Power Input: 3-6S LiPo
  • Dimensions: 45.6(L) x 44(W) x 8(H) mm
  • Weight: 23.5g

For more details and purchasing options, visit the official product page: SpeedyBee F405 V4 BLS 60A 30×30 FC&ESC Stack
