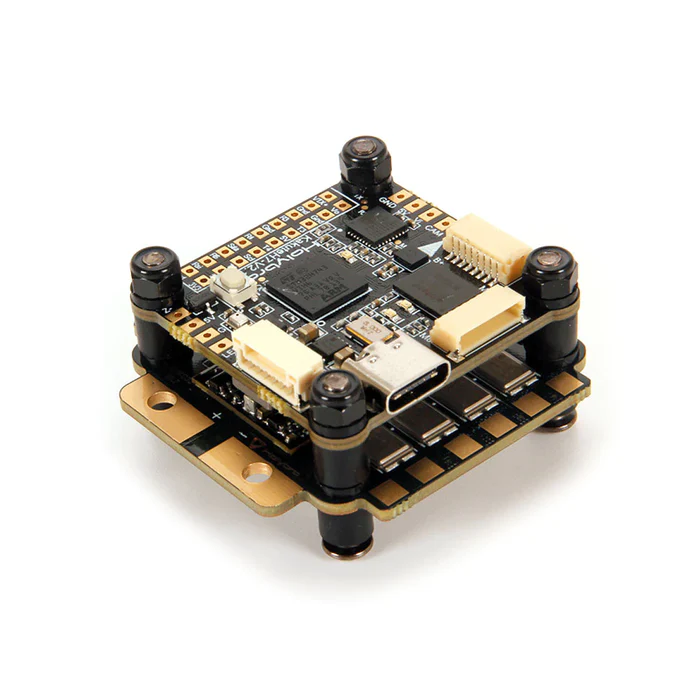

Holybro Kakute H7 + Tekko32 65A Stack
The Holybro Kakute H7 + Tekko32 65A Stack is a premium 30x30mm flight controller and ESC combo designed for serious FPV pilots. The Kakute H7 flight controller features a powerful STM32H743 processor, ICM-42688 gyro, built-in barometer, Bluetooth for wireless tuning, and support for DJI and Caddx digital FPV systems. It includes a microSD Blackbox and multiple UARTs for easy connectivity. The Tekko32 4-in-1 ESC delivers 65A continuous current with excellent heat management and supports 4-6S batteries. This stack provides smooth, reliable power and advanced features, making it ideal for freestyle, cinematic, and long-range drone builds.
SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack
The SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack is a high-performance flight controller and electronic speed controller combination designed for FPV racing and freestyle drones.
Flight Controller Specifications:
- MCU: STM32F405
- Gyro: BMI270
- USB Port Type: Type-C
- Barometer: Built-in
- OSD Chip: AT7456E
- Bluetooth: Supported (used for flight controller configuration; MSP should be enabled with baud rate 115200 on UART4)
- Power Input: 3S – 6S LiPo
- 5V Output: 9 groups, total current load 2A
- 9V Output: 2 groups, total current load 2A
- 3.3V Output: Up to 500mA current load
- 4.5V Output: Up to 1A current load
- UART: 6 sets (UART1, UART2, UART3, UART4 for Bluetooth, UART5 for ESC telemetry, UART6)
- Mounting: 30.5 x 30.5mm (4mm hole diameter)
- Dimensions: 41.6(L) x 39.4(W) x 7.8(H) mm
- Weight: 9.6g
ESC Specifications:
- Firmware: BLHeli_S J-H-40
- Continuous Current: 60A per motor
- Burst Current: 80A (10 seconds)
- Power Input: 3-6S LiPo
- Dimensions: 45.6(L) x 44(W) x 8(H) mm
- Weight: 23.5g
For more details and purchasing options, visit the official product page: SpeedyBee F405 V4 BLS 60A 30×30 FC&ESC Stack
SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack
The SpeedyBee F405 V3 BLS 60A 30×30 FC&ESC Stack is a high-performance flight controller and electronic speed controller combination designed for FPV racing and freestyle drones.
Flight Controller Specifications:
- MCU: STM32F405
- Gyro: BMI270
- USB Port Type: Type-C
- Barometer: Built-in
- OSD Chip: AT7456E
- Bluetooth: Supported (used for flight controller configuration; MSP should be enabled with baud rate 115200 on UART4)
- Power Input: 3S – 6S LiPo
- 5V Output: 9 groups, total current load 2A
- 9V Output: 2 groups, total current load 2A
- 3.3V Output: Up to 500mA current load
- 4.5V Output: Up to 1A current load
- UART: 6 sets (UART1, UART2, UART3, UART4 for Bluetooth, UART5 for ESC telemetry, UART6)
- Mounting: 30.5 x 30.5mm (4mm hole diameter)
- Dimensions: 41.6(L) x 39.4(W) x 7.8(H) mm
- Weight: 9.6g
ESC Specifications:
- Firmware: BLHeli_S J-H-40
- Continuous Current: 60A per motor
- Burst Current: 80A (10 seconds)
- Power Input: 3-6S LiPo
- Dimensions: 45.6(L) x 44(W) x 8(H) mm
- Weight: 23.5g
For more details and purchasing options, visit the official product page: SpeedyBee F405 V4 BLS 60A 30×30 FC&ESC Stack
