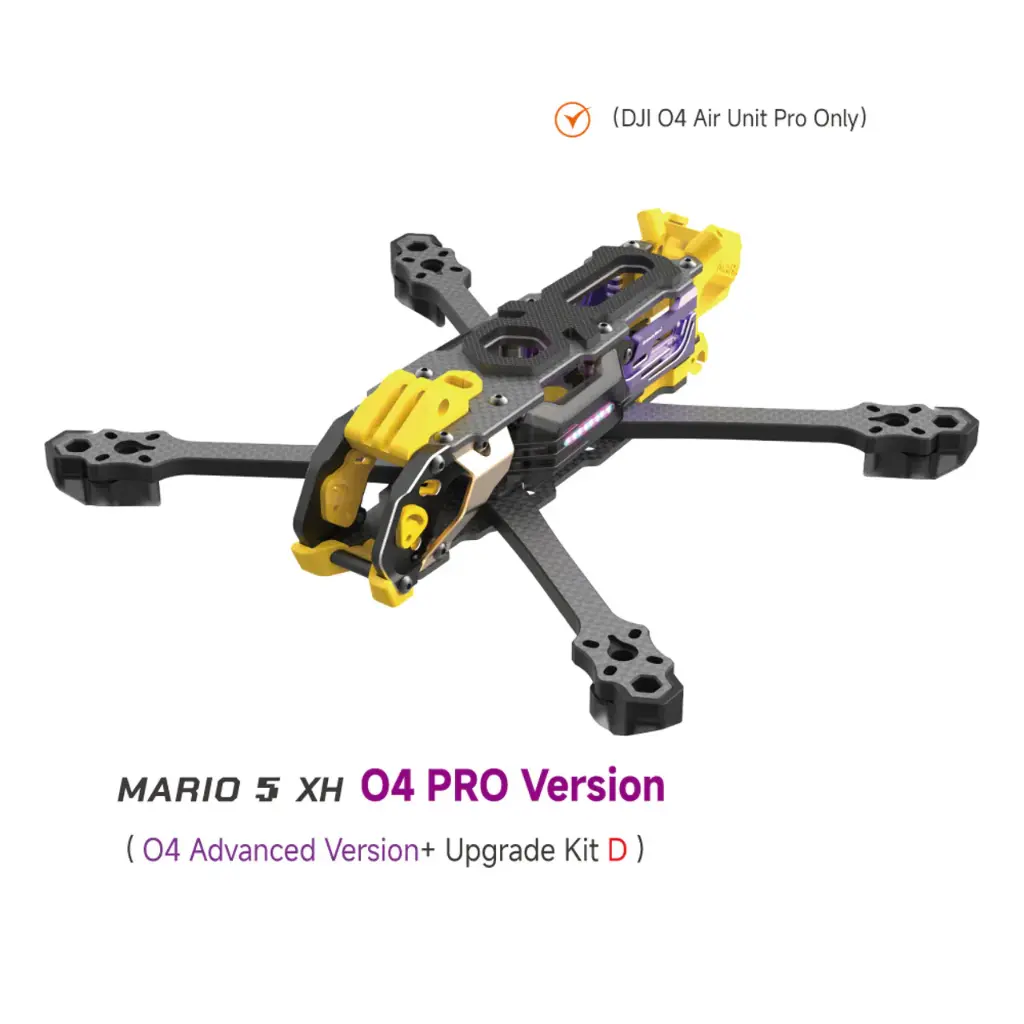

SpeedyBee Mario 5 XH O4 PRO Version (5inch)
SpeedyBee Mario 5 XH O4 Pro Version (5-inch) is a versatile FPV freestyle frame designed for DJI O4, O3, and analog systems. Crafted with strong 6mm carbon fiber arms and a 226mm wheelbase, it delivers excellent durability and flight stability. The CNC aluminum front cage protects your camera, while side plates help with video system cooling. It includes smart cable management options, ND filter support, and multiple stack mounting holes. Whether you're flying freestyle or cinematic, this frame combines professional features with an affordable price—making it a top choice for FPV pilots looking to build a clean, powerful 5-inch quad.
SpeedyBee Mario 5 Frame
Specifications:
- Model: SpeedyBee Mario 5 Frame
- Mario 5 DC Wheelbase: 227mm
- Mario 5 DC Weight: 129 ±5g (excluding 3D parts), 170 ±5g (with 3D parts and injection)
- Mario 5 XH Wheelbase: 226mm
- Mario 5 XH Weight: 126 ±5g (excluding 3D parts), 167 ±5g (with 3D parts and injection)
- Top Plate Thickness: 2.5mm (T300 3K)
- Middle Plate Thickness: 2.0mm (T300 3K)
- Bottom Plate Thickness: 2.5mm (T300 3K)
- Arm Thickness: 6mm (T300 3K)
- Camera Mounting Screw: 7mm
- 3D Printed Parts: Yellow TPU
- Battery Anti-Slip Pad: 3mm Silicone
- Motor Spring Hole Position: Φ8mm
- Compatible Prop Size: Max 5.1 Inch
- Motor Mounting Hole Distance: 16-19mm
- FC Mounting Hole: 30.5x30.5mm (M3)
- VTX Mounting Hole: 20x20mm (M2) / 25.5x25.5mm (M2)
- Head Material: Aviation Aluminum Alloy
- Aluminum Column Material: 7075 D5*23mm / D46*22mm
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25x13x6mm
- Capacitor Size: Φ10mm x 20mm
- GPS Installation Size: 18x18x7mm
- Camera Compatibility: 19mm / 20mm
